| Model |

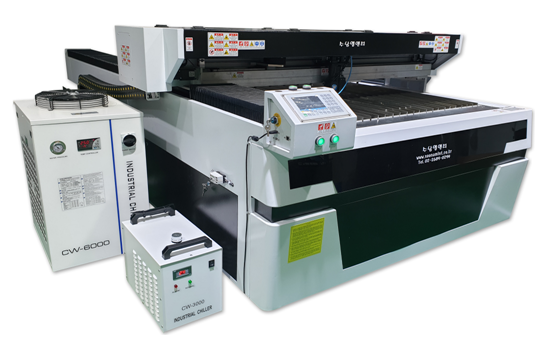

Laser cutting machine SN-LC-1325-CO2 |
|
| Processing area (가공범위) |
1300x2500mm |
| Laser power (레이저파워) |
Rated power 290W (300W) & Max. power 310W (320W) |
|

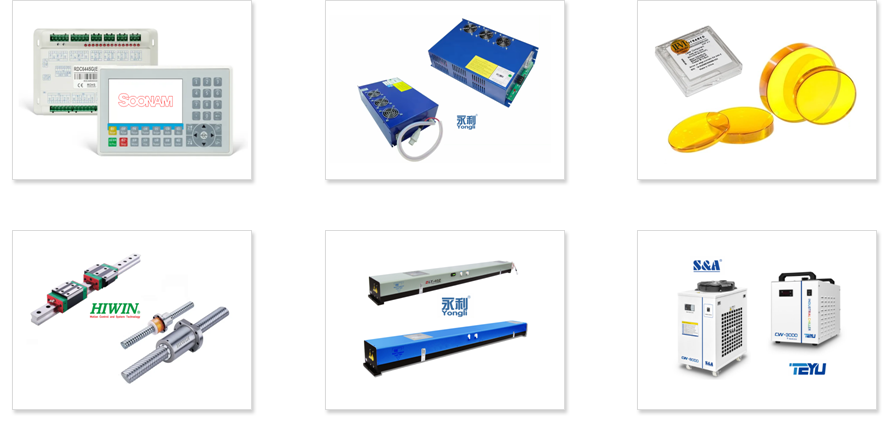

| Laser tube (레이저튜브) |
Sealed-off CO2 beam combined tube, DLT-300P (DLT-40Z) |
| Laser power supply (레이저파워서플라이) |
YL-HSP200, 2pcs |
| Working table structure (작업테이블구조) |
Aluminium knife (knife distance 30mm) |
| Control system (제어시스템) |
RDC6445G or RDC6445S |
| Operating panel (조작패널) |
5.0 inch TFT LCD screen (854x480 resolution, 64K color) |
| XY axis transmission (XY축구동방식) |
Ball screw with linear guideway |
| XY axis servo motor (XY축서보모터) |
HG-KN43J-S100 |
| XY axis servo driver (XY축서보드라이버) |
MR-JE-40A |
| Focus lens (포커스렌즈) |
ZnSe 25mmDIA., 100mmF.L. (equipped with water-cooled device) |
| Reflective mirror (반사경) |
Silicon 38.1mmDIA., 5mmTHK (equipped with water-cooled device) |
| Operating air pressure (작동에어압력) |
0.15~0.25MPa (1.5~2.5bar) |
| Communication interface (통신인터페이스) |
Ethernet or PC-USB (incl. Udisk) |
| Software (소프트웨어) |
RDWorksV8 |
| Supported graphic format (그래픽형식) |
ai (Illustrator) or dxf (AutoCAD) |
| Chiller (냉각기) |
TEYU S&A, CW-6000 and CW-3000 (AC 1P 220~240V 50/60Hz) |
| Exhaust fan (배기팬) |
1.1Kw |
| Operating voltage (사용전압) |
Single-Phase, 220V-60Hz |
| Power consumption (소비전력) |
≤3000W |
|
| Overall dimension (장비크기) |
2000 x 3750 x 1020mm (±5mm) |
