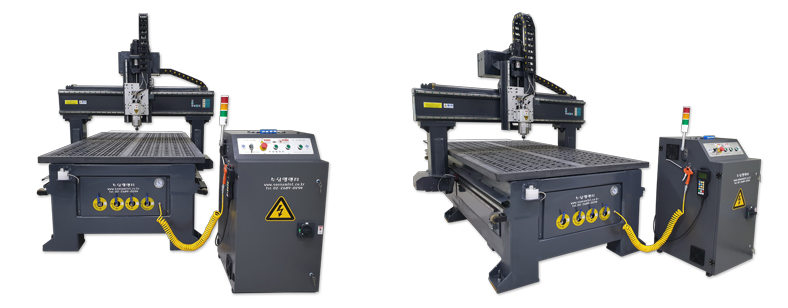

| SN-CNC-9018 |
 CNC 조각기 > SN-CNC-9018 |
|
| |
|
| |
| ▶ 가공소재 및 응용분야 |
| 아크릴, MDF, 포멕스, 각종 광고용 소재/자재, 경질고무, 베이클라이트, 에폭시, MC나일론, ABS, EVA, PC, PE, PET, PP, PVC 등... |
| |
 |
| |
| Model |
SN-CNC-9018-ST |
SN-CNC-9018-SV |
|
| Processing area (가공범위) |
900x1800mm |
| Working table structure (작업테이블구조) |
Double layer vacuum table |
|

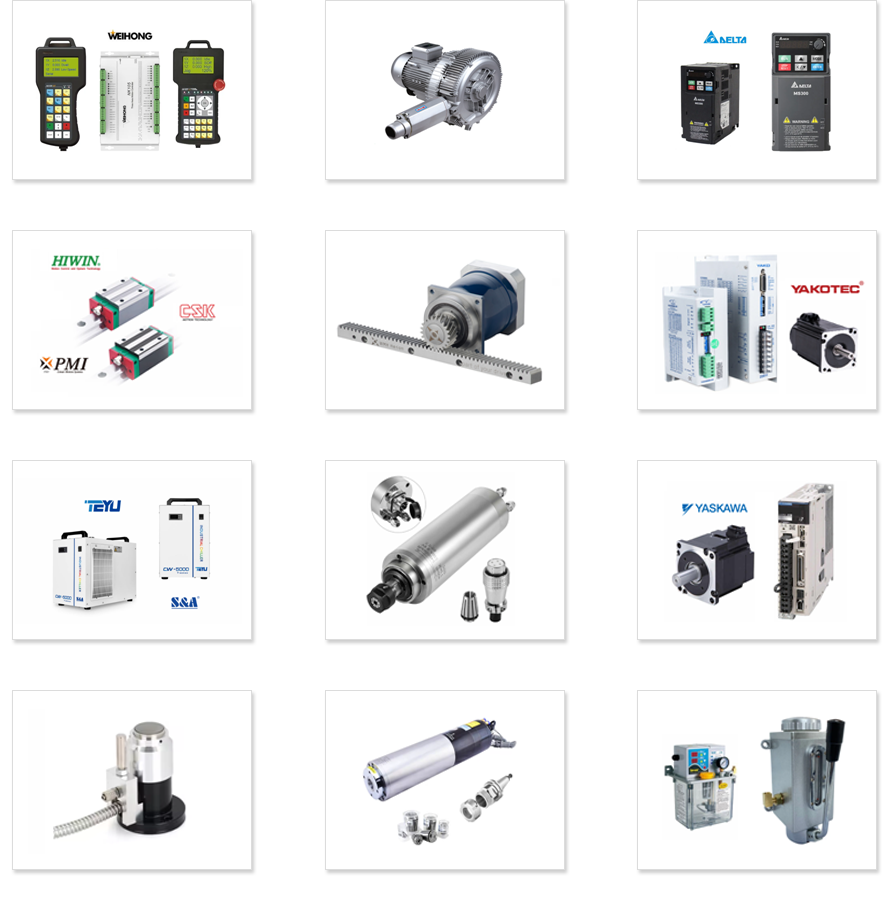

| Spindle (스핀들) |
Water-cooled manual spindle 3Kw - 24000rpm |
| Collet (콜렛) |
ER20 |
| Chiller (냉각기) |
TEYU S&A, CW-5000 (AC 1P 220~240V 50/60Hz) |
| Inverter (인버터) |
Delta, 3.7Kw - VFD9A0MS43ANSAA |
| XYZ axis motor & driver (XYZ축모터&드라이버) |
Yakotec, step system |
Yaskawa, servo system |
| XYZ axis guide rail (XYZ축가이드레일) |
Hiwin, CSK and/or PMI square rail |
| XY axis transmission (XY축구동방식) |
Diagonal rack gear and pinion |
| Z axis transmission (Z축구동방식) |
Ball screw |
| Control system (제어시스템) |
Weihong, NK105 |
| Oil lubrication system (윤활시스템) |
Manual type oil lubricator 2pcs (for XZ axis ; for Y axis) |
| Software (소프트웨어) |
ArtCAM or Aspire |
| Ring blower (링블로워) |
3.7Kw (incl. pressure relief valve RV-A36) |
| Operating voltage (사용전압) |
Single-Phase, 220V and Three-phase, 380V |
| Standard accessories (기본제공품목) |
Z axis tool sensor, end mill, spanner & wrench |
|
| Overall dimension (장비크기) |
1715 x 2780 x 1825mm (±5mm) |
|
| |
 |
| |
|
| |
|
|
|
