| SN-FL-3015-FC |
 파이버레이저 > SN-FL-3015-FC |
|
| |
|
| |
| ▶ 가공소재 및 응용분야 |
Mild steel (연강), Carbon steel (탄소강), Alloy steel (합금강), Stainless steel (스테인리스스틸), Aluminium (알루미늄), Brass (황동)
Galvanized steel sheet (아연도금철판), Bronze (청동), Titanium gold (티타늄골드) 및 금속 소재류 |
| |
 |
| |
| Model |

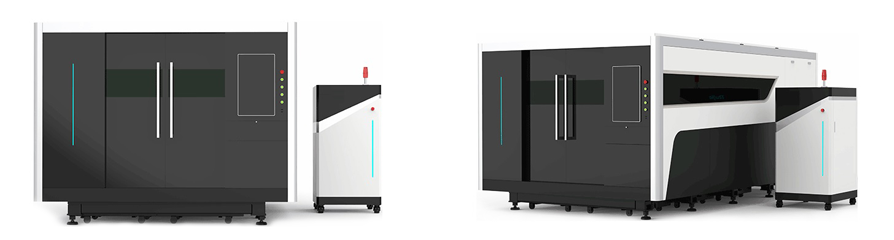

Fiber laser cutting machine Type : SN-FL-3015-FC |
| Processing area (가공범위) |
1500x3000mm |
| Laser power (레이저파워) |
2000W, 3000W, 4000W & 6000W ~ 12000W |
| Laser generator (레이저제너레이터) |
Raycus or IPG |
| Wavelength (파장) |
1070nm ±10nm |
| Laser head (레이저헤드) |
Worthing (WSX) or RayTools |
| Fiber connector (파이버커넥터) |
QBH interface |
| Working table style (작업테이블형태) |
Sawtooth blade table |
| XYZ axis motor & driver (XYZ축모터&드라이버) |
Servo motor & servo driver |
| XY axis transmission (XY축동력전달) |
Diagonal rack gear and pinion |
| Z axis transmission (Z축동력전달) |
Ball screw |
| XYZ axis guide rail (XYZ축가이드레일) |
Hiwin or CSK square rail |
| Fiber control system (파이버컨트롤시스템) |
Friendess Electronic Technology, FSCUT series |
| Z axis height controller (Z축높이제어컨트롤러) |
BCS100 |
| Software (소프트웨어) |
CypCut |
| Supported graphic format (데이터형식) |
AI, DXF & PLT … |
| Chiller (냉각기) |
Teyu electromechanical (S&A), CWFL series |
| Assist gas (보조가스) |
O2 (Oxygen), N2 (Nitrogen) & compressed air |
| Consumption parts (소모성부품류) |
Protective lens, ceramic body & nozzle (single or double layer) |
| Operating voltage (사용전압) |
Single-Phase 220V & Three-phase 380V |
|
| |
 |
| |
|
| |
|
|
|
